• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1956 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 297000

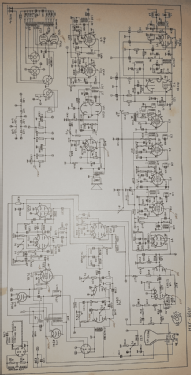

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 EF80 EB91 12BH7 EF42 EF42 EB91 ECL80 ECC82 EB91 ECC82 6BX7GT PL81 EY51 PY81 MW43-64

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TV-1711B - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 500 x 460 x 535 mm / 19.7 x 18.1 x 21.1 inch

• Mentioned in
• Schemario apparecchi tel. ediz. CELI vol. 1 pag 169

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
