• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1957 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 171595

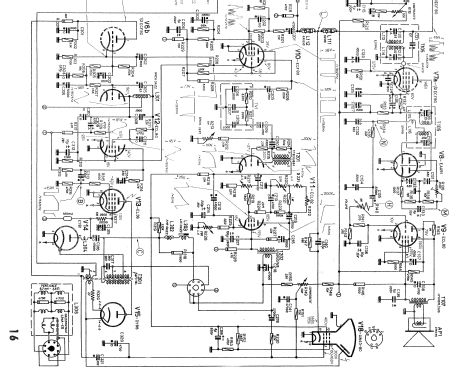

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 EF80 PL83 EF80 EF80 EF80 EB91 PCL82 PCF80 PCL82 EB91 ECC82 PL81 PY81 PY82 PY82 DY86 17QP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 100-270 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: TV-1727 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, with any shape - general.

• Notes
• Cinescopio 17" 70° tipo cilindrico- magnetico.
  VHF (S8) 8 canali ingresso in cascode.
  FI 4 stadi 40 MHz sistema intercarrier.
  Comandi frontali.

• Literature/Schematics (1)
• -- Schematic (Schemario dei Televisori Phonola 1952 al 1964)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
