Viking 42-33 12A75-E
Eaton Co. Ltd., The T. (Viking); Toronto
- Country
- Canada
- Manufacturer / Brand
- Eaton Co. Ltd., The T. (Viking); Toronto
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 179911
From a Canadian Kijiji advertisement.
From a Canadian Kijiji advertisement.
From a Canadian Kijiji advertisement.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Viking 42-33 12A75-E - Eaton Co. Ltd., The T. Viking;
- Notes
-
Push-button tuning; tuning eye.
Made by Dominion Electrohome for the T. Eaton Company department stores.
- Circuit diagram reference
- Radio College of Canada
- Mentioned in

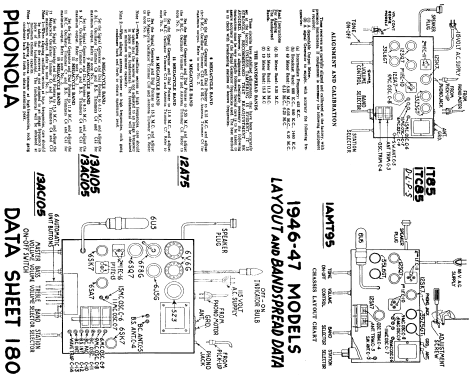

- RCC Phonola Pages 167, 180, 180c
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
