- Country
- Canada
- Manufacturer / Brand
- Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 179896

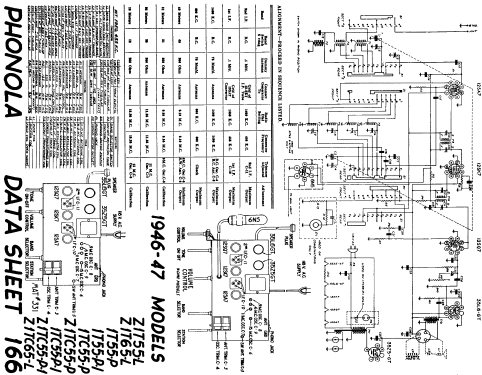

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Z1TC55-P - Electrohome Dominion
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Phonola Pages 166, 180b
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
- Other Models
-
Here you find 895 models, 280 with images and 807 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
