• Country
• Germany

• Manufacturer / Brand
• Phywe, Physikalische Werkstätten A.G.; Göttingen

• Year
• 1972 ?

• Category
• Teaching aids-material

• Radiomuseum.org ID
• 329464

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AU7 6DJ8 6DJ8 5UP1

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

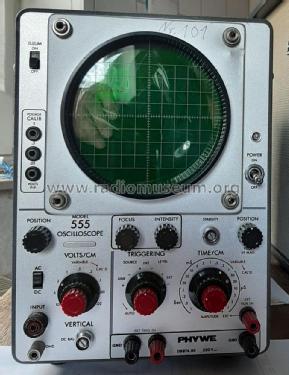

• Model: Oscilloscope 555 06974.93 - Phywe, Physikalische

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 205 x 295 x 450 mm / 8.1 x 11.6 x 17.7 inch

• Notes

• Oscilloscope  PHYWE 555

  (Y) 0-8 MHz, Trigger-Arbeitsbereich 50 Hz bis 8 MHz.

  Siehe auch Ultron 555



• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 876.00 DM

• Author
• Model page created by Andree Barth. See "Data change" for further contributors.
