• Germany

• Manufacturer / Brand
• Phywe, Physikalische Werkstätten A.G.; Göttingen

• Year
• 1954 ??

• Category
• Teaching aids-material

• Radiomuseum.org ID
• 164440

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• EC92

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Powered by external power supply or a main unit. / AC 6,3 & DC 250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

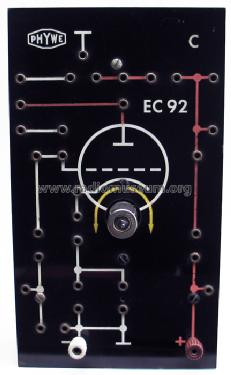

• Model: Röhrenplatte für EC92 C - Phywe, Physikalische

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 160 x 280 x 45 mm / 6.3 x 11 x 1.8 inch

• Notes
• Modul aus Funk-Lehrgerät.

  Verwendungsmöglichkeiten:
  - Hochfrequenzverstärker,
  - Kathodenfolger,
  - Demodulator (Richtverstärker und Audion),
  - Demodulation mit Kathodendetektor,
  - Niederfrequenzverstärker.

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)
