• Country
• Switzerland

• Manufacturer / Brand
• Piega SA Horgen am Zürichsee

• Year
• 1987

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 148047

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

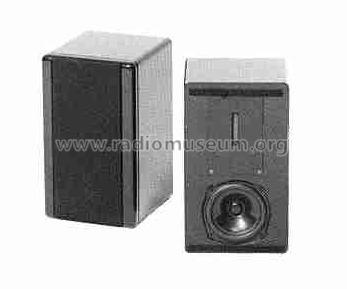

• Model: Arlecchino - Piega SA Horgen am Zürichsee

• Dimensions (WHD)
• 200 x 340 x 210 mm / 7.9 x 13.4 x 8.3 inch

• Notes
• 2-Weg-Regalbox mit 60 Watt Sinus an 4 Ohm, 89dB/W/m.
  Bestückung: TT 5BP No.0020, MHT 4Ag No.0132
  Ausführung: Schwarz hochglanz, schwarz Schleiflack matt.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
