All-in-One Pocket Meter

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pifco Ltd., Provincial Incandescent Fittings Co. Ltd.; Manchester

• Year
• 1930 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 130856

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage

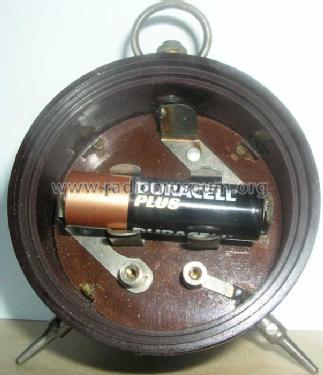

• Dry Batteries / 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org
• Model: All-in-One Pocket Meter - Pifco Ltd., Provincial

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

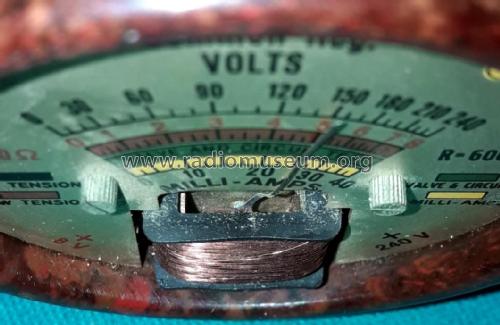

• Messbereich: 0...8 V, 0...240 V-, 0...40 mA. Valve and Circuit Test. British Patent Nr. 337881. Foreign made.

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jos Lauth. See "Data change" for further contributors.
