- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 314296
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
- Number of Tubes
- 24
- Valves / Tubes
- 6BQ7 6U8 6BA6 EM84 EM84 6BN6 6AU6 6BA6 6U8 6BA6 ECC83 ECC83 12AU7 ECC83 EZ81 12AU7 12AX7 12AX7 GZ34 EL84 EL84 EL84 EL84
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer); Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 5 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1078 - Pilot Electric Mfg. Co. Radio
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 38 x 18 x 32 inch / 965 x 457 x 813 mm
- Notes
-
This is a AM/FM phonograph console manufactured by Pilot Electric.

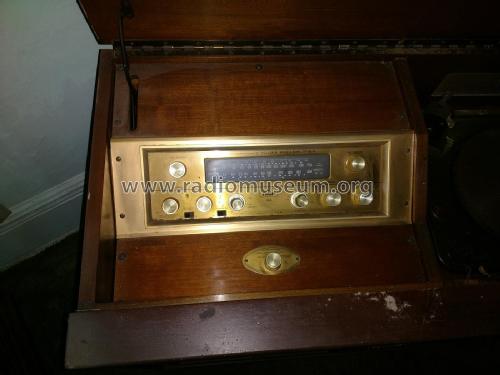

The top lid of the cabinet covers the tuner/preamplifier on the left side and the record changer on the right side.
The electronic components are the Pilot Model 590 AM/FM tuner/preamplifier which has 16 tubes and the Pilot Model SA-232 amplifier that has 8 tubes. The turntable is the Garrard model RC 88/4 record changer.
There is a separate 4 position speaker selection switch which selects main, channel A, channel B, and Vistaphonic 3 channel. There are provisions to attach one or two extension speakers.
The wood cabinet is made of fruitwood.
Speaker complement:
Woofer: 2 x 12 inch
Mid-Range: 2 x 6 inch
Tweeter: 1 x 3.5 inch
- Price in first year of sale
- 789.50 USA
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 488, Folder 11, 6-60 (tuner/preamplifier))
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 454, Folder 16 (audio amplifier))
- Author
- Model page created by Jon Kummer. See "Data change" for further contributors.
