• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1934 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51752

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6D6 6A7 76 6D6 6D6 85 6C6 76 42 42 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• 115; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• from Radiomuseum.org

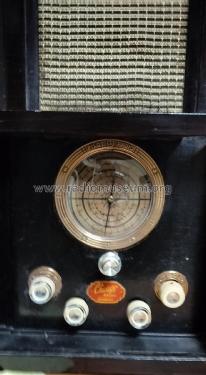

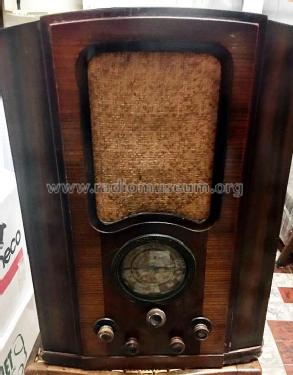

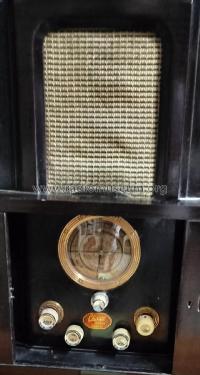

• Model: 115 - Pilot Electric Mfg. Co. Radio

• Notes
• Model for the european area only; push-pull af output stage.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 6 = 1935 and before

• Mentioned in
• Rider´s Changes Page 7-3
