• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51797

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

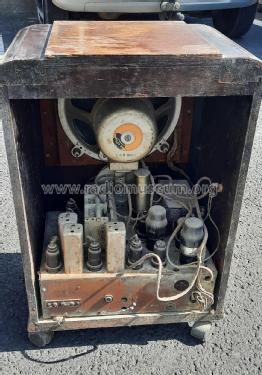

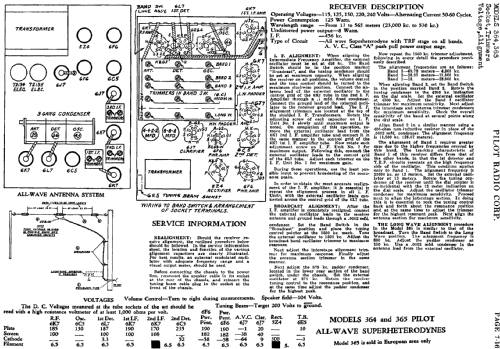

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6K7 6L7 6C5 6K7 6E5 6K7 6C5 6J7 6J7 6F6 6F6 5Z4

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 364 - Pilot Electric Mfg. Co. Radio

• Shape
• Tablemodel, with any shape - general.

• Notes
• Tuning eye; push-pull af output stage.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before
