- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 151659
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Power type and voltage
- Direct Current supply (DC)
- from Radiomuseum.org
- Model: 37-DC - Pilot Electric Mfg. Co. Radio

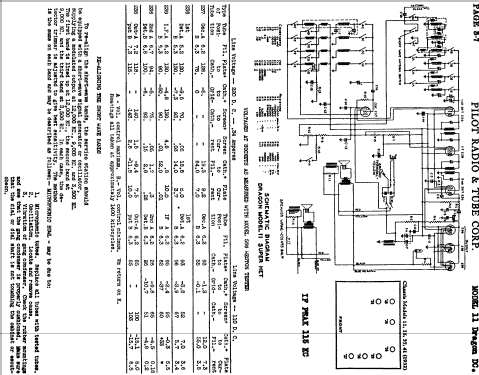

- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
