• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1932 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51809

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 58 58 57 47 80

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115; 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org

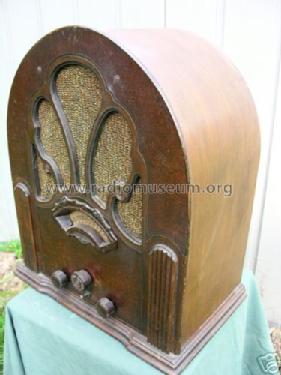

• Model: 43 [early] - Pilot Electric Mfg. Co. Radio

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 14 x 17 x 9 inch / 356 x 432 x 229 mm

• Notes
• There is also a superhet model 43 late, using different tubes and circuitry (and SW).

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• External source of data
• Ernst Erb

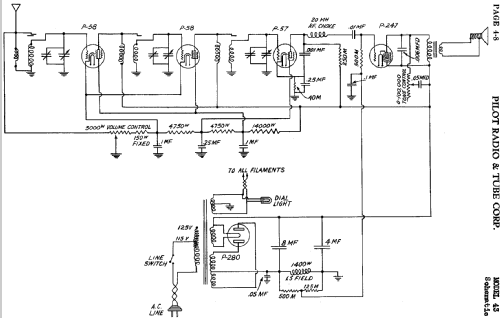

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Mentioned in
• Cathedral & Tombstone Radios (page 198.)
