- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146365
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

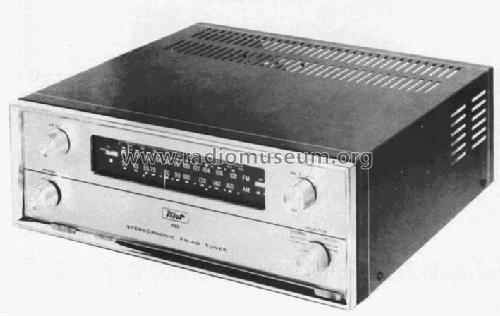

- Model: 580 - Pilot Electric Mfg. Co. Radio
- Shape
- Book-shelf unit.
- Notes
- AC operated AM - FM tuner.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 488 folder 10 date 6-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
