- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 265676
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 50-60 cycles, 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20.5 cm = 8.1 inch
- Material
- Wooden case
- from Radiomuseum.org

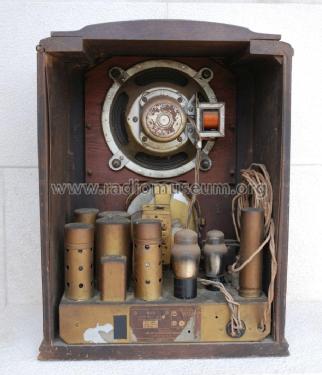

- Model: 65 - Pilot Electric Mfg. Co. Radio
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 367 x 480 x 235 mm / 14.4 x 18.9 x 9.3 inch
- Net weight (2.2 lb = 1 kg)
- 10.3 kg / 22 lb 11 oz (22.687 lb)
- Author
- Model page created by José Manuel Silvestre. See "Data change" for further contributors.
