- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1935 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 301331
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Todocoleccion 66924922 antiguedades canal
Todocoleccion 66924922 antiguedades canal
Todocoleccion 66924922 antiguedades canal
Todocoleccion 66924922 antiguedades canal
Todocoleccion 66924922 antiguedades canal
Todocoleccion 66924922 antiguedades canal
Todocoleccion 66924922 antiguedades canal
Todocoleccion 66924922 antiguedades canal
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org

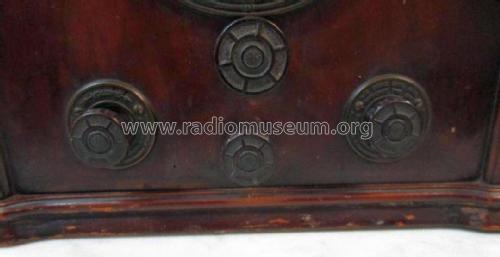

- Model: 65-F - Pilot Electric Mfg. Co. Radio
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-
See also Pilot X-65-F.
- Literature/Schematics (1)
- Rider's Perpetual, Volume 6 = 1935 and before (page 6-5)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
