- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 310343
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 115 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110 - 125 Volt
- Material
- Wooden case
- from Radiomuseum.org

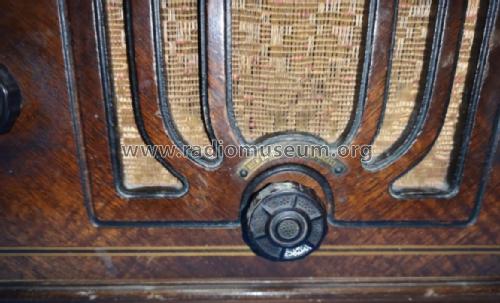

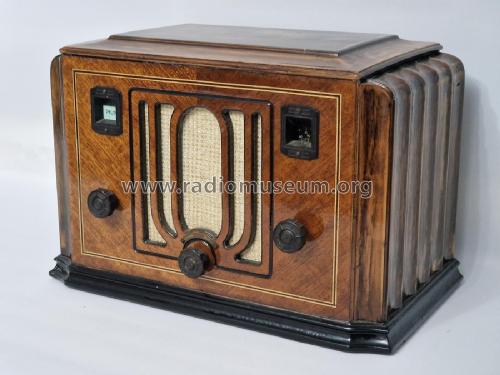

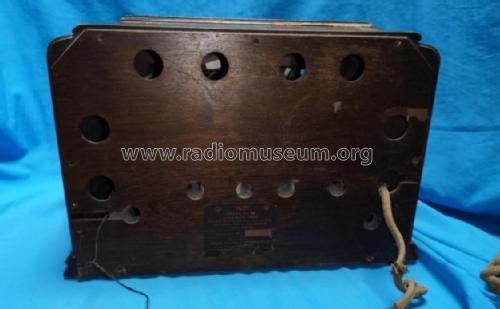

- Model: 92 - Pilot Electric Mfg. Co. Radio
- Shape
- Tablemodel, low profile (big size).
- Author
- Model page created by Carlos Balaguer Ibañez. See "Data change" for further contributors.
