- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98042
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

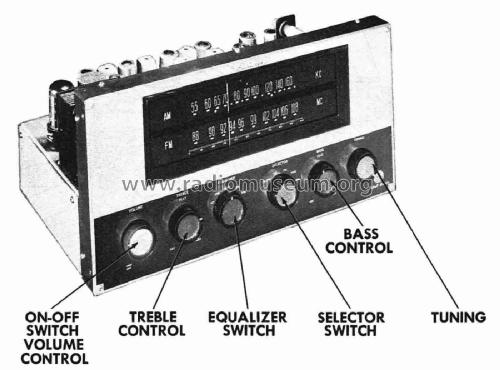

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: AF-825 - Pilot Electric Mfg. Co. Radio
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 14.25 x 9 x 7.5 inch / 362 x 229 x 191 mm
- Notes
-
Pilot model AF-825 is an AC operated AM-FM superheterodyne tuner with equalizer pre-amplifier.
- Price in first year of sale
- 130.00 $
- Literature/Schematics (1)
- Allied Radio Catalog Nº 150, 1956
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 296 Folder 9 dated 11-55)
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
