• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1957 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 316147

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

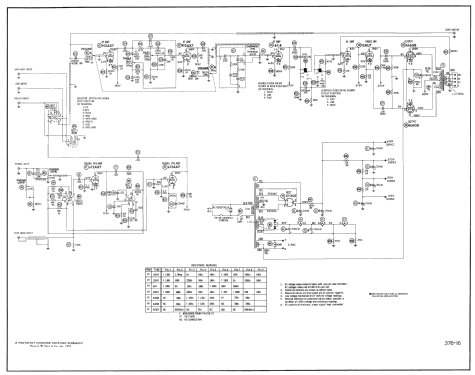

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AX7 12AX7 6C4 12AU7 6L6GB 6L6GB 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Amplifier AA-920B - Pilot Electric Mfg. Co. Radio

• Shape
• Book-shelf unit.

• Notes

• Pilot model AA-920B is a AC operated 5 channel audio amplifier.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 376 Folder 16 dated 11-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 544 models, 271 with images and 408 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
