BS745
Pilot Radio Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pilot Radio Ltd.; London
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 88691
Q= prospectus

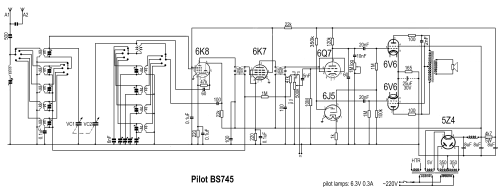

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 100-110; 200-225; 230-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BS745 - Pilot Radio Ltd.; London
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 520 x 320 x 250 mm / 20.5 x 12.6 x 9.8 inch
- Notes
- Kurzwellenbereich: 13m-53m Bandspread: 19.3m-20.2m / 24.9m-26m / 30.8m-32m.
- Price in first year of sale
- 5,850.00 BFr
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
