C-1075 Ch= SP-210 + SA-232
Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 152619
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: C-1075 Ch= SP-210 + SA-232 - Pilot Electric Mfg. Co. Radio
- Shape
- Console with any shape - in general
- Notes
- The Pilot Model C-1075 is an AC operated FM-AM Tuner FA-540 (see there) with Stereo Phono Amplifier and 4 Speed Automatic Record Changer.
- Literature/Schematics (1)

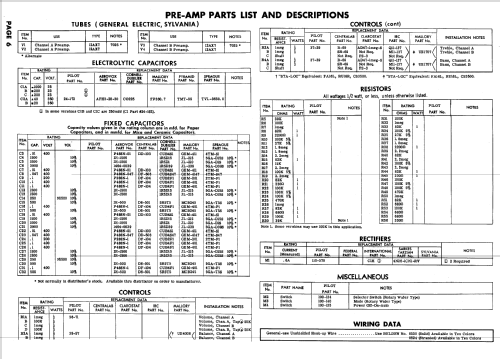

- Photofact Folder, Howard W. SAMS (Date 9-59, Set 454, Folder 16)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
