- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 309235
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Direct Current supply (DC) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

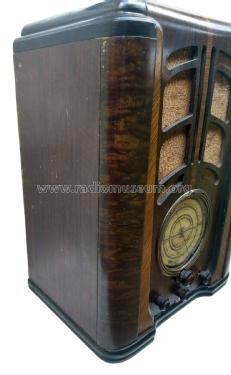

- Model: G5206 - Pilot Electric Mfg. Co. Radio
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-
Schematic may be similar to the Pilot 255.
- Author
- Model page created by Arthur Zoppe. See "Data change" for further contributors.
