G562B

Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1937 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 341303
    • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
  • Power out
  • 3 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org

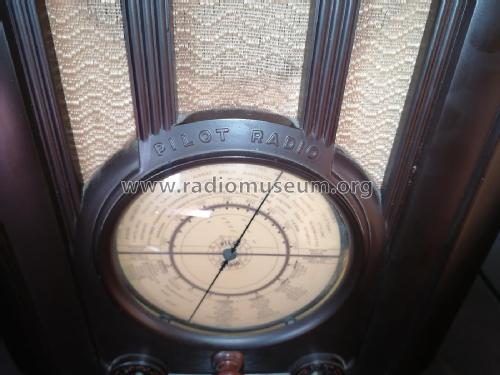

  • Model: G562B - Pilot Electric Mfg. Co. Radio
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 350 x 480 x 265 mm / 13.8 x 18.9 x 10.4 inch
  • Notes

  • Consumo de 60 Watts

  • Net weight (2.2 lb = 1 kg)
  • 13 kg / 28 lb 10.1 oz (28.634 lb)
  • Author
  • Model page created by Francisco Martins. See "Data change" for further contributors.
