- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1929 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 51953
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

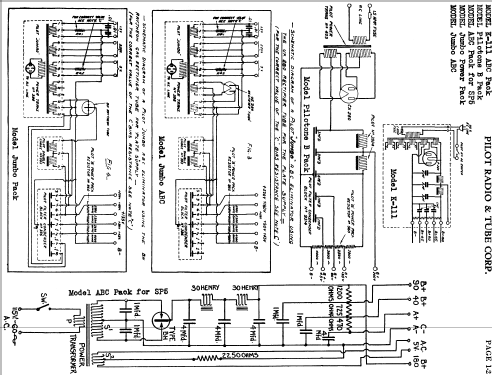

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 80
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: Jumbo ABC - Pilot Electric Mfg. Co. Radio
- Notes
- 1.5, 2.25 and 5.0 V "A" voltage; 45, 90, 135, 180 and 220 V "B" voltage.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
