• Country
• USA

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1929 ??

• Category
• Strom-Versorgung oder Spannungsstabilisator

• Radiomuseum.org ID
• 51954

• • anderer Name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

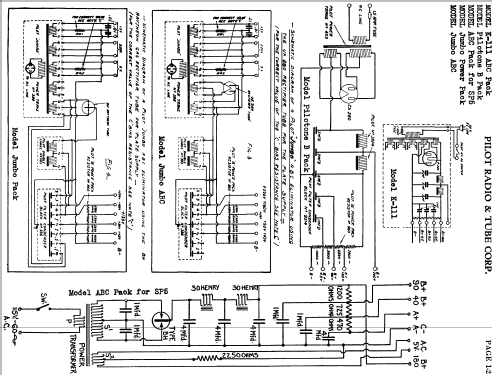

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• BH

• Wave bands
• - ohne

• Power type and voltage
• Wechselstromspeisung / 110 Volt

• Lautsprecher
• - - Kein Ausgang für Schallwiedergabe.

• from Radiomuseum.org
• Model: Jumbo Power Pack - Pilot Electric Mfg. Co. Radio

• Notes
• 1.5, 2.25 and 5.0 V "A" voltage; 45, 90, 135, 180 and 220 V "B" voltage.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
