• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pilot Radio Ltd.; London

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85978

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF80 UCL82 UY85

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

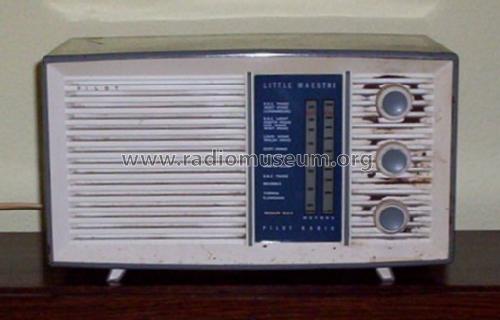

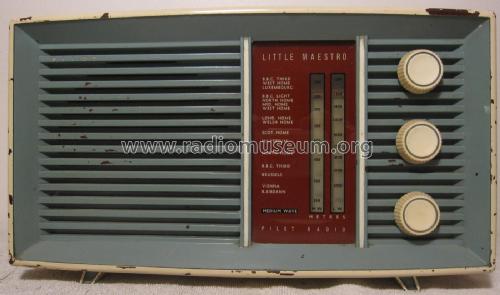

• Model: Little Maestro T105 - Pilot Radio Ltd.; London

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 280 x 160 x 150 mm / 11 x 6.3 x 5.9 inch

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Price in first year of sale
• 13.00 GBP

• Literature/Schematics (1)
• - - Data from my own collection (Paul Stenning CD Vol 1)
