Little Maestro T68
Pilot Radio Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pilot Radio Ltd.; London
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 279648
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s); Export model
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

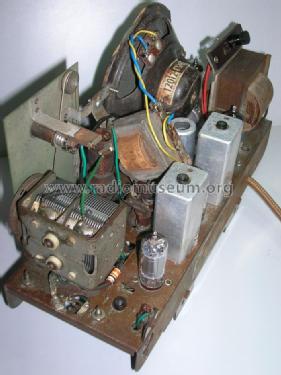

- Model: Little Maestro T68 - Pilot Radio Ltd.; London
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 305 x 195 x 145 mm / 12 x 7.7 x 5.7 inch
- Notes
-
Wave bands:
- MW 185 to 550 m.
- SW 16 to 65 m.
Dial lamp: 6,5V/0,3A.
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
