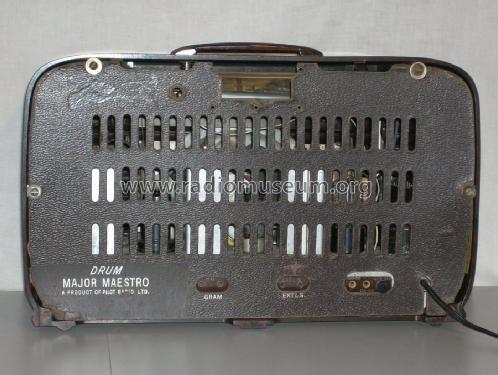

Major Maestro Drum
Pilot Radio Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pilot Radio Ltd.; London
- Year
- 1942 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 337392
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 100-110; 130-150; 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Major Maestro Drum - Pilot Radio Ltd.; London
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 387 x 175 x 232 mm / 15.2 x 6.9 x 9.1 inch
- Notes
-
5-valve, AC-powered AM/SW/LW Superhet.
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
