Navigator domestic model
Pilot Radio Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pilot Radio Ltd.; London
- Year
- 1946–1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103081
Pais
Pais
Click on the schematic thumbnail to request the schematic as a free document.

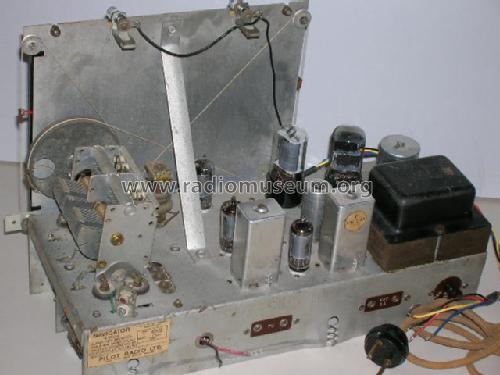

- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 100-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Navigator [domestic model] - Pilot Radio Ltd.; London
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 548 x 330 x 230 mm / 21.6 x 13 x 9.1 inch
- Notes
- Waves: 4× SW. On some models the 6V6 was changed by 6AQ5; Y61 omitted on some models.
- Source of data
- - - Data from my own collection
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
