• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pilot Radio Ltd.; London

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88690

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8 6K7 6Q7 6V6 5Z4

• Main principle
• Superheterodyne (common); ZF/IF 451 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 200-225; 230-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

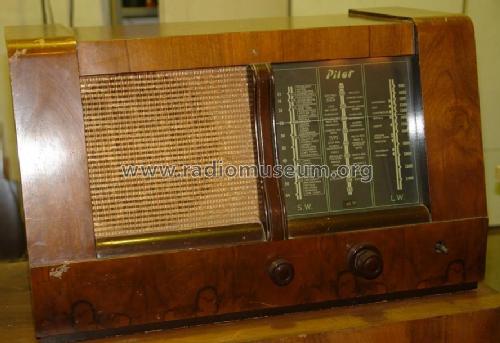

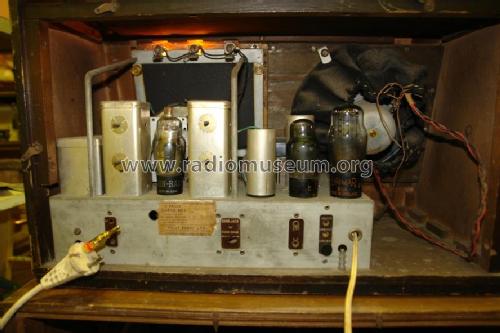

• Model: SH545 - Pilot Radio Ltd.; London

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 320 x 250 mm / 20.5 x 12.6 x 9.8 inch

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
