• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 328127

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• ECC85 6AU6 6AU6 6AU6 unknown_Tube unknown_Magic-Eye 7025 7025 12AX7 12AX7 12AX7 12AX7 12AU7 7591 7591 7591 7591

• Main principle
• Superhet with RF-stage

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 44 W (60 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo FM Multiplex Tuner-Amplifier 654MA - Pilot Electric Mfg. Co. Radio

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 14.625 x 5.125 x 12.94 inch / 371 x 130 x 329 mm

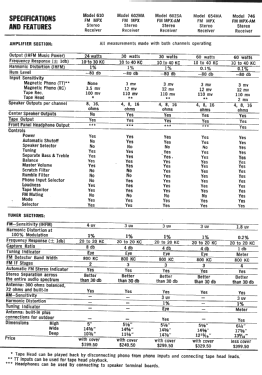

• Notes

• Stereo receiver, with center speaker output.  Similar to Pilot 654, but FM only.

• Price in first year of sale
• 329.50 USD

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 584, Folder 7, August 1962)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
