- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pilot Radio Ltd.; London
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 202024
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 451 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

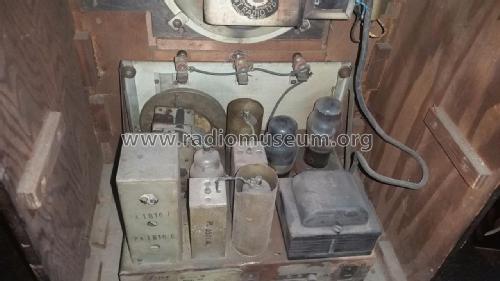

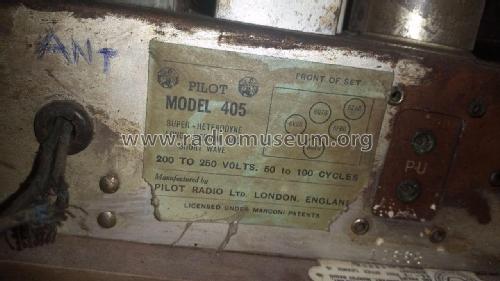

- Model: T405 - Pilot Radio Ltd.; London
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
An export version also exists for AC mains 100-250 volts.
See also Pilot console model 63 and Pilot table model T63.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (492)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
