Twentieth Century High-Band H-34F
Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1933 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 267069
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 112 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 50-60 cycles, 125 Volt

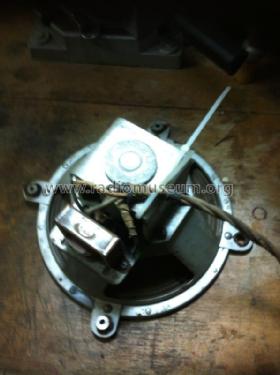

- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Twentieth Century High-Band H-34F - Pilot Electric Mfg. Co. Radio

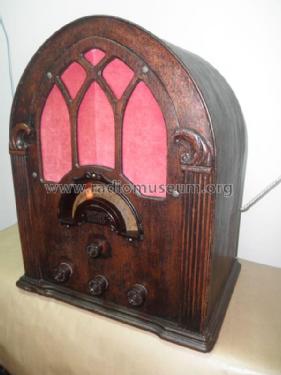

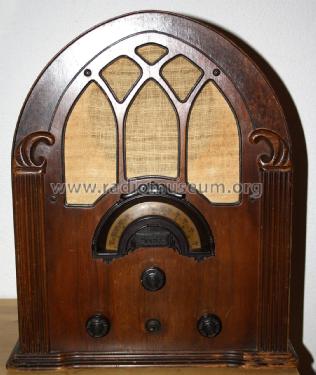

- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 405 x 468 x 262 mm / 15.9 x 18.4 x 10.3 inch
- Net weight (2.2 lb = 1 kg)
- 15.2 kg / 33 lb 7.7 oz (33.48 lb)
- Author
- Model page created by Jose Francisco Lama Barquero. See "Data change" for further contributors.
