PT-1040 AA902A + FA550
Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 222738
-
- alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
- Number of Tubes
- 17
- Valves / Tubes
- 12AT7 6BA6 12AT7 6U8 6BA6 6AU6 6AU6 6AL5 12AU7 12AX7 EM81 6C4 12AU7 6L6GB 6L6GB 5Y3GT 5Y3GT
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- 3 Loudspeakers / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: PT-1040 AA902A + FA550 - Pilot Electric Mfg. Co. Radio
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 35.25 x 29 x 16.75 inch / 895 x 737 x 425 mm
- Notes

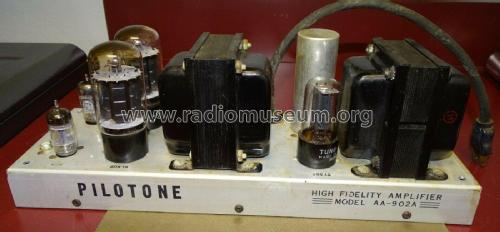

- The Pilot PT-1040 is a console hi-fi AM/FM/phono with 3-way speaker. The unit contains a Pilot FA-550 tuner/preamp and a Pilot AA-902A power amplifier chassis.
- Author
- Model page created by Thomas Albrecht. See "Data change" for further contributors.
