- Country
- Germany
- Manufacturer / Brand
- Dynacord (W. Pinternagel); Straubing
- Year
- 1950/1951
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 104550

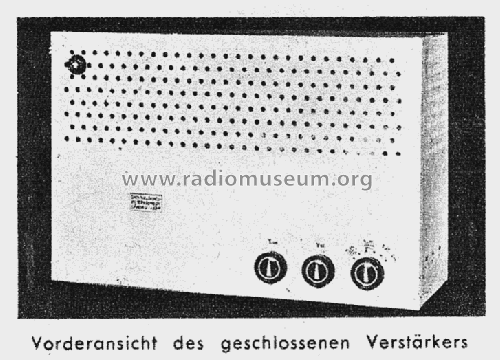

F T 13/50 S.390
Anzeige aus Funkschau 4/1950

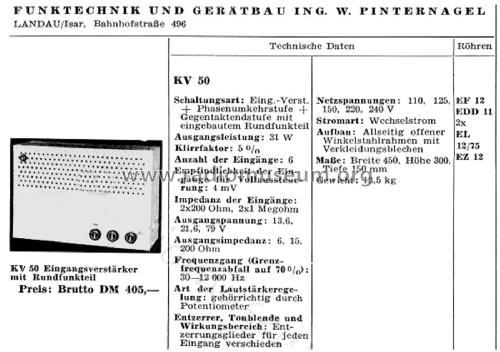

Q: Katalog RF/FS-Großhandel 1950/51
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 31 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: KV50 - Dynacord W. Pinternagel;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 450 x 300 x 150 mm / 17.7 x 11.8 x 5.9 inch
- Notes
-
6 Eingänge; Ausgangsspannung: 13,6/21,6/79 V,
Ausgangsimpedanz: 6/15/200 Ohm;
Frequenzgang: 30-12000 Hz.Eingebautes Rundfunkteil: Einkreiser, Audion mit Rückkopplung.
- Net weight (2.2 lb = 1 kg)
- 13.5 kg / 29 lb 11.8 oz (29.736 lb)
- Price in first year of sale
- 405.00 DM
- Source of data
- Kat.d. Rundf.Gr.Handel 1950/51
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
