• Country
• Germany

• Manufacturer / Brand
• Dynacord (W. Pinternagel); Straubing

• Year
• 1951–1953

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 19936

• Number of Tubes
• 6

• Valves / Tubes
• EF40 EF40 ECC40 EL12/375 EL12/375 EZ12

• Main principle
• Audio-Amplification

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Mischverstärker UE30 - Dynacord W. Pinternagel;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 190 x 150 mm / 15 x 7.5 x 5.9 inch

• Notes
• Universal-Mischverstärker; 50-12000 Hz; 4 Eingänge, 3 Ausgänge. Rundfunkempfänger (MW/LW) eingebaut.

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Price in first year of sale
• 455.00 DM

• External source of data
• Erb

• Source of data

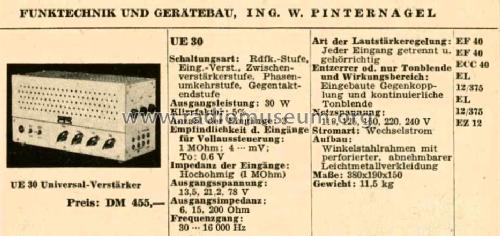

• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 2, Ernst Erb
