• Country
• Germany

• Manufacturer / Brand
• Pintsch-Electro GmbH (Elektro); Konstanz

• Year
• 1954 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 135243

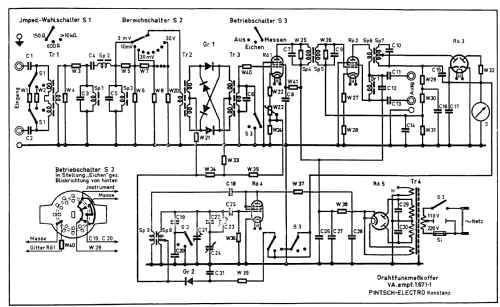

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF42 EF42 EF42 EAA91 EZ40

• Wave bands
• Long Wave and/or Very Low Frequency (VLF).

• Details
• Wired Wireless Receiver (RF!)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Drahtfunkmesskoffer VA. Empf. 1.671-1 - Pintsch-Electro GmbH Elektro;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 180 x 180 mm / 9.8 x 7.1 x 7.1 inch

• Notes
• Pintsch Electro Konstanz,
  Drahtfunkmesskoffer VA. Empf. 1.671-1.
  Empfangsbereich 110...300 kHz.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Otto Kippes † 24.4.17. See "Data change" for further contributors.
