• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1983 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 274278

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Power out
• 80 W (240 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 3-Way Speaker System S-910 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 390 x 670 x 371 mm / 15.4 x 26.4 x 14.6 inch

• Notes

• Pioneer 3-Way 3-Speaker System Model S-910.
  Bass-Reflex bookshelf Type
  33 - 50000Hz, 92,5dB/W/m, 6,3 Ohms
  Maximum Music Power: 240 Watts
  Rated Power: 80 Watts
  CrossOver: 1300Hz, 5800Hz
  1x Woofer 300mm Cone Type
  1x MidRange 100mm Cone Type
  1x Tweeter Beryllium ribbon type
  MidRange Level Control, High Level Control
  Detachable Grille
  Vinyl Walnut Finish

• Net weight (2.2 lb = 1 kg)
• 23 kg / 50 lb 10.6 oz (50.661 lb)

• Mentioned in

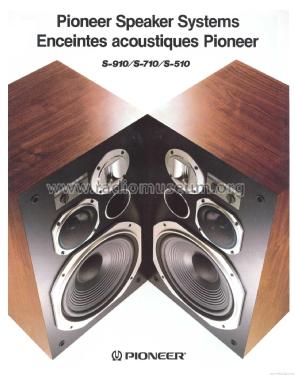

• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
