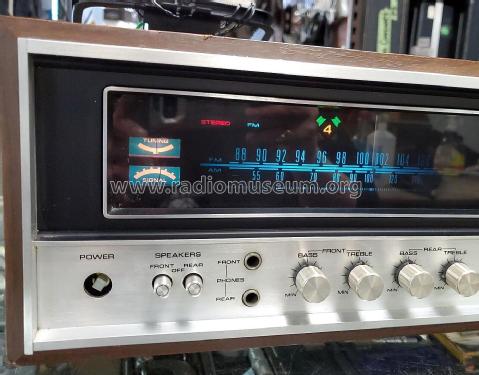

4-Channel Receiver QX-8000A

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 342881

 Technical Specifications

  • Number of Transistors
  • 77
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110/120/130/220/240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 200 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 4-Channel Receiver QX-8000A - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 509 x 172 x 377 mm / 20 x 6.8 x 14.8 inch
  • Notes

  • 4-Channel Receiver Model Pioneer QX-8000A

    Continuous power: quadraphonic, 20 Hz - 20 kHz

    • 8 Ohm: 4 x 22 Watt
    • 4 Ohm: 4 x 27 Watt

    Music performance: quadraphonic, 20 Hz - 20 kHz

    • 8 Ohm: 140 Watt
    • 4 Ohm: 200 Watt

    Gesamtklirrfaktor: < 1 % bei Nennleistung
    Dämpfungsfaktor: 35 bei 8 Ohm, 1 kHz
    Frequenzgang: 5 - 100'000 Hz ± 3 dB

    Signalrauschabstand:

    • Phono: > 75 dB
    • Line: > 90 dB

    Klangregelung:

    Bass: + 11 dB, - 12 dB bei 100 Hz
    Höhen: + 10,5 dB, - 8,5 dB bei 10 kHz
    Loudness: + 11,5 dB bei 100 Hz, + 7 dB bei 10 kHz
    Low Filter (Subsonic): - 6,5 dB bei 50 Hz (6 dB / Oktave)
    High Filter: - 11,5 dB bei 10 kHz (6 dB / Oktave)

    • Frequenzen:
    • UKW: 87,5 - 108 MHz
    • MW: 525 - 1605 kHz
    • Mikrofoneingang Front
    • MPX Noise Filter
    • FM Muting
    • Bass / Hochtonregler V + H separat

    Power Consumption 250 Watts max.

    Note:
    Model QX-8000A comes in 3 Versions
    KUW - 120V only - UL approved (U.S.A.)
    FSAW - 5-position selector - SABS approved (South Africa)
    FW - 5-position selector - General export model with de-emphasis selector switch



  • Net weight (2.2 lb = 1 kg)
  • 15.6 kg / 34 lb 5.8 oz (34.361 lb)
  • Price in first year of sale
  • 1,398.00 DM
  • Mentioned in
  • Pioneer Service Manual
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
