Stereo Amplifier A-9

Pioneer Corporation; Tokyo

Dati
Forum
Immagini
Collezioni

  • Anno
  • 1980–1982
  • Categoria
  • Amplificatore audio o mixer audio
  • Radiomuseum.org ID
  • 142917

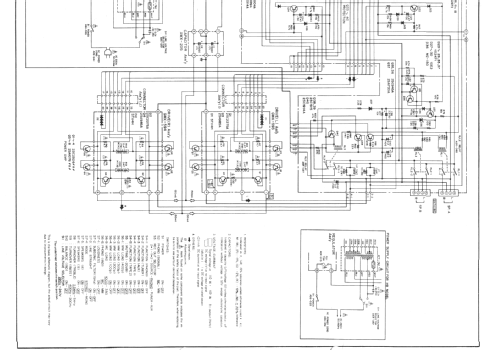

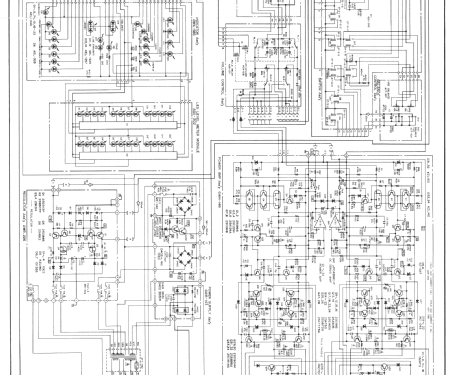

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.

 Specifiche tecniche

  • Numero di transistor
  • A semiconduttori.
  • Principio generale
  • Amplificatore audio
  • Gamme d'onda
  • - senza
  • Particolarità
  • Hi-Fi equipment
  • Tensioni di funzionamento
  • Alimentazione a corrente alternata (CA) / 120; 220/240; 110/120/220/240 Volt
  • Altoparlante
  • - Questo apparecchio richiede altoparlante/i esterno/i.
  • Potenza d'uscita
  • 220 W (indistorta)
  • Materiali
  • Mobile di metallo
  • Radiomuseum.org
  • Modello: Stereo Amplifier A-9 - Pioneer Corporation; Tokyo
  • Forma
  • Apparecchio per ripiani a scaffale (come i componibili HiFi).
  • Dimensioni (LxAxP)
  • 420 x 150 x 443 mm / 16.5 x 5.9 x 17.4 inch
  • Annotazioni

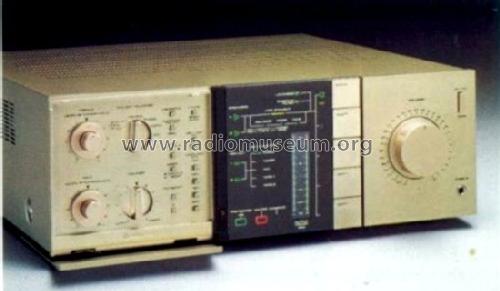

  • A hi-fi stereo "Non-Switching" integrated amplifier housed in a champagne gold metal case with a Pictographic display, with continuous power output of 2 x 110 watts into 8 ohms. LED power meter. Terminals for 2 pairs of loudspeakers, jack for headphones.

    Integrierter "Non-Switching"-Stereo-Verstärker in Gleichstrom-Servotechnik; Pictographische Anzeige. 2 x 140 Watt Sinus an 8 Ohm (DIN).
    Eingänge: Plattenspieler, 2 TB, Tuner, AUX.
    Ausgänge: 2 Paar LS, Kopfhörer.

    Specification
    Continuous Power Output


         		 110 watts per channel, min., into 8Ω
    from 20Hz — 20,000Hz
    with no more than 0.003% THD
    Total Harmonic Distortion
    (20Hz — 20,000Hz, 8Ω, from TUNER)
     Continuous rated output
     55 watts per channel output    		 No more than 0.003%
    No more than 0.003%
    Intermodulation Distortion
    (8Ω, from TUNER)
     Continuous rated output
     55 watts per channel output    		 No more than 0.005%
    No more than 0.003%
    Damping Factor
    (20Hz to 20,000Hz, 8Ω)    		 60
    Input Sensitivity/Impedance
     PHONO MM
      MM load capacitance
     PHONO MC
      MC load resistance
     TUNER, AUX, TAPE PLAY 1, 2    		 2.5mV/50kΩ
     100, 200, 300, 400 pF
    0.1mV/100Ω
     33,100Ω
    150mV/50kΩ
    Output Level/Impedance
     TAPE REC 1, 2
     Speaker    		 150mV/50kΩ
    A/OFF, B/OFF (4—16Ω)
    Frequency Response
     PHONO (RIAA Equalization)
     TUNER, AUX, TAPE PLAY 1 , 2    		 20Hz — 20,000Hz ±0.2dB
    5Hz — 200,000Hz +0dB,-3dB
    Filter
     LOW (SUBSONIC)
    20Hz (12dB/oct.)
    Hum and Noise
    (IHF, short circuited A network)
     PHONO MM
     PHONO MC
     TUNER, AUX, TAPE PLAY 1, 2    		 90dB
    74dB
    110dB
    Hum and Noise
    (DIN, continuous rated output/50mW)
     PHONO MM
     PHONO MC
     TUNER, AUX, TAPE PLAY 1, 2    		 80dB/68dB
    75dB/70dB
    95dB/70dB

    Versions/Power requirements

    KC USA 120V AC 60Hz
    KC Canada 120V AC 60Hz
    HE Europe 220/240V AC 50/60Hz with voltage selector
    HB UK 240/220V AC 50/60Hz with voltage selector
    S General 110/120/220/240V AC 50/60Hz with voltage selector
    S/G US Military 110/120/220/240V AC 50/60Hz with voltage selector



  • Peso netto
  • 16 kg / 35 lb 3.9 oz (35.242 lb)
  • Fonte dei dati
  • -- Original prospect or advert
  • Bibliografia

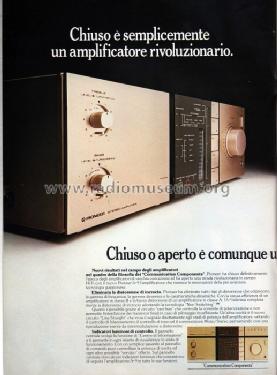

  • Advertisement - Discoteca Hi-Fi, May 1981 - Italy
  • Letteratura / Schemi (1)
  • - - Manufacturers Literature (1981/82 Pioneer Hi-Fi Stereo catalogue)
  • Letteratura / Schemi (2)

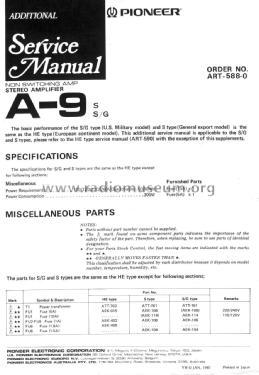

  • - - Manufacturers Literature (Service manual Pioneer A-9 dated Dec 1980)
  • Autore
  • Modello inviato da Franz Scharner. Utilizzare "Proponi modifica" per inviare ulteriori dati.
