AM Tuner Amplifier AX-330
Pioneer Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Pioneer Corporation; Tokyo
- Year
- 1969 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 352469
Picture from Pioneer service manual

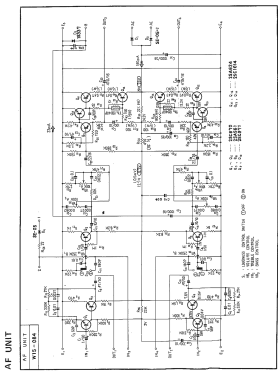

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 19
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 50 to 60 Hz, 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: AM Tuner Amplifier AX-330 - Pioneer Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 125 x 330 mm / 17.3 x 4.9 x 13 inch
- Notes
-
AM Tuner Amplifier Model Pioneer AX-330
- Tuning range: AM
- Stereo power output: 6 watts per channel into 8 Ω (stereo)
- Input sensitivity: 2.7 mV (MM), 240 mV (line)
- Output: 280 mV (line)
- Speaker load impedance: 4 Ω to 16 Ω
Each solid state device is listed once only.
- Net weight (2.2 lb = 1 kg)
- 5.3 kg / 11 lb 10.8 oz (11.674 lb)
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
