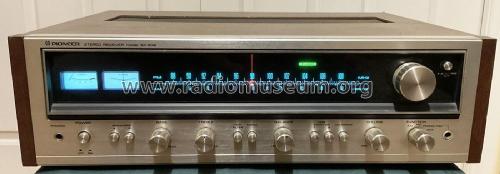

AM/FM Stereo Receiver SX-636FV

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 342985

 Technical Specifications

  • Number of Transistors
  • 33
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 130; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: AM/FM Stereo Receiver SX-636FV - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 18.875 x 5.8125 x 15.9375 inch / 479 x 148 x 405 mm
  • Notes

  • High-perfomance stereo receiver featuring 25 watts per channel, min. RMS 8 ohms from 20 hertz to 20,000 hertz with no more than 0.5% total harmonic distortion.

    See also Models SX-636KCU and SX-636GN.

  • Net weight (2.2 lb = 1 kg)
  • 24 lb 10 oz (24.625 lb) / 11.180 kg
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
