• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 2001

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 314886

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

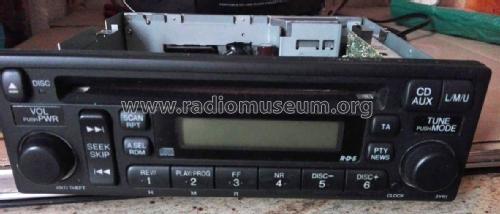

• Model: Car Radio / CD Player DEH-M6017 ZH - Pioneer Corporation; Tokyo

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 175 x 48 x 185 mm / 6.9 x 1.9 x 7.3 inch

• Notes
•
  * Entrada auxiliar
  * Potencia de salida: MOSFET 50W x 4 - impedancia de altavoz de 4 ohmios.
  * Sintonizador de AM, FM (24 estaciones preestablecidas).
  * Búsqueda de frecuencia automática / manual. PTY (búsqueda y alerta de emergencia.  *
  * CD MP3

  Made in Belgium.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
