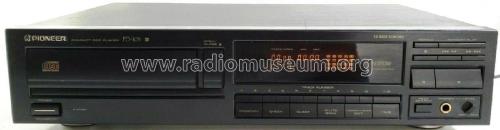

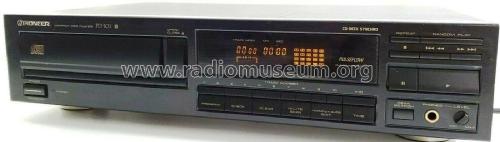

Compact Disc Player PD-101

Pioneer Corporation; Tokyo

  • Year
  • 1992
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 218556

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-127; 120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player PD-101 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 101 x 276 mm / 16.5 x 4 x 10.9 inch
  • Notes
  • A hi-fi stereo compact disc player. 1-bit DLC (Direct Linear Conversion) with High-Speed & High-Density Pulseflow D/A Converter, anti-resonance and vibration design with  honeycomb chassis and large insulators. RCA phono sockets for Line Output, jacks for CD-Deck Synchro, system Control input/output and for headphones with volume control.

    Functions

    • "Talk-back" input
    • CD-Deck Synchro
    • Compu-PGM Edit and Auto program editing
    • Hi-Lite Scan
    • Peak search
    • Memory hold (programmed tracks)
    • 5-mode repeat: 1 TRACK, ALL, PROGRAM. RANDOM, and HI-LITE SCAN
    • Direct track access by 10 numeric keys
    • Random programmed play of 24 tracks
    • Random play
    • 20-track music calendar
    • Timer play (timer optional)
    • Pioneer SR (System Remote) ready
    Specification
    Frequency response  2Hz - 20kHz
    S/N ratio
      U.S. and Canadian models
      Other models
    98dB or more (EIAJ)
    102dB or more (EIAJ)
    Dynamic range 96dB or more (EIAJ)
    Harmonic distortion 0.003% or less (EIAJ)
    Output voltage 2.0V
    Wow and flutter Limit of measurement

    Versions/Power requirements
    European model                  AC 220-240V 50/60 Hz
    U.K. and Australian models  AC 220-240V 50/60 Hz
    U.S. and Canadian models   AC 120V 60Hz
    Other models    AC 110-127/220-240V 50/60 Hz (with voltage selector)

    Power consumption: US & Canadian models 12 W, Other models 13 W

    The Other models have dimensions (WHD) of 420 x 96 x 276 mm

  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • -- Original prospect or advert (1992 Pioneer Audio/Video Components catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Operating Instructions PD-101 PD-201 dated 1992)
