Compact Disc Player PD-4700

Pioneer Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Pioneer Corporation; Tokyo

Year
1991 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
242362

Schematics

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 1534774) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 1534778) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 1534781) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 1534782) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

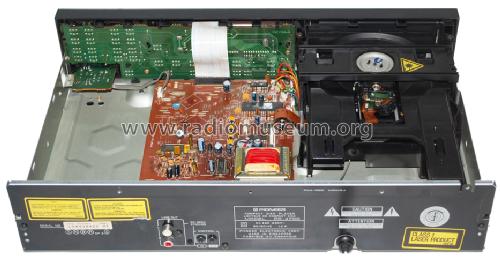

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 1534784) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 1534786) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 1534789) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 1534791) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 2248736) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 2248737) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 2248738) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 2248739) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Compact Disc Player PD-4700; Pioneer Corporation; (ID = 2248740) R-Player — Pioneer Corporation; Compact Disc Player PD-4700 (1)

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)

Power type and voltage
Alternating Current supply (AC) / 110; 120-127; 220; 240; 220-230; 230-240 Volt

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Compact Disc Player PD-4700 - Pioneer Corporation; Tokyo

Shape
Book-shelf unit.

Dimensions (WHD)
420 x 101 x 276 mm / 16.5 x 4 x 10.9 inch

Notes

A hi-fi stereo compact disc player. 1 bit DLC (Direct Linear Conversion). With RCA phono Line Output sockets, terminals for CD-Deck Synchro and Control input/output, and on U.K. and European models only, a jack for Headphones with volume control.

Functions
Play
Pause
Stop
Manual search
Track search
Peak search
Hi-lite scan
Direct selection
Single track repeat
All track repeat
Programmed repeat
Random play repeat
Programmed random play repeat
Programmed playback (up to 24 tracks)
Pause program
Program check
Program correction
Program clear
Auto program edit
Compu program edit
Random play
Programmed random play
Program hold
Level hold
Timer start
CD-deck synchro

Specification
Frequency response	2Hz - 20kHz
Dynamic range	96dB or more (EIAJ)
Total harmonic distortion	0.003% or less (EIAJ)
Output voltage	2.0V
Wow and flutter	Limit of measurement
Number of channels	2 channels (stereo)

Versions/Power requirements
U.K. and Australian models AC 230-240V 50/60Hz
European model AC 220-230V 50/60Hz
U.S. and Canadian models AC 120V 60Hz
Multi-voltage model AC 110/120-127/220/240V 50/60Hz (with voltage selector)

Power consumption: 12W

The above dimensions are of the U.K. and European models, dimensions of other market models are 420(W) x 96(H) x 276(D) mm.

Made in Singapore

Net weight (2.2 lb = 1 kg)
3.6 kg / 7 lb 14.9 oz (7.93 lb)

Literature/Schematics (1)
- - Manufacturers Literature (Service manual PD-6700 PD-5700 PD-4700 dated 1991)

Literature/Schematics (2)
- - Manufacturers Literature (Operating Instructions PD-6700 PD-5700 PD-4700)

Author
Model page created by Jürgen Küting. See "Data change" for further contributors.
