Compact Disc Player PD-5030

Pioneer Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Pioneer Corporation; Tokyo

Year
1986–1988

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
320244

Schematics

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 3116357) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (1)

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 3116354) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (1)

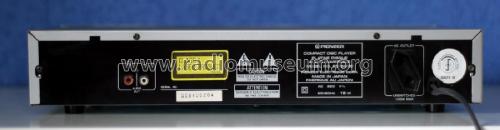

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 3116356) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (1)

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 3116352) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (1)

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 3116355) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (1)

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 3116353) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (1)

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 3116358) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (1)

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 2516046) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (2)

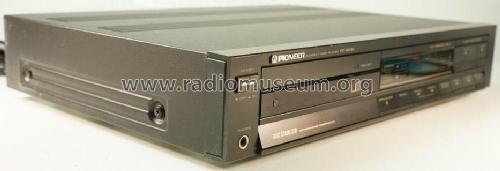

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 2516047) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (2)

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 2516048) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (2)

Compact Disc Player PD-5030; Pioneer Corporation; (ID = 2516050) R-Player — Pioneer Corporation; Compact Disc Player PD-5030 (2)

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment

Power type and voltage
Alternating Current supply (AC) / 110; 120; 220; 240 Volt

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Compact Disc Player PD-5030 - Pioneer Corporation; Tokyo

Shape
Book-shelf unit.

Dimensions (WHD)
420 x 80 x 290 mm / 16.5 x 3.1 x 11.4 inch

Notes

A hi-fi stereo compact disc player. With RCA phono Line Output sockets, AC outlet.

Features

Disc Stabilizer

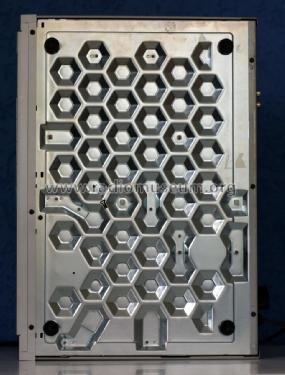

Honeycomb chassis
Low centre of gravity floating optical pickup mechanism
Isolated pickup and more stable chassis balance
Random programmed play of 24 tracks
2-way search: Track and 3-speed manual
3-way repeat: All tracks, programmed tracks and single track
Timer start
6-digit LED display: Track number, elapsed time, total play time
Headphone output

Specification
System	Compact Disc digital audio system
Frequency Response	4 - 20,000Hz ±0.5dB
Signal-to-Noise Ratio (EIAJ)	97dB
Dynamic Range (EIAJ)	95dB
Channel Separation (E1AJ)	92dB
Wow and Flutter (EIAJ)	Unmeasurable
Distortion (EIAJ)	0.004%
Output Voltage (EIAJ)	2V ±0.5V

Versions/Power requirements
BK 110/120/220/240V AC 50-60Hz (switchable)

Power Consumption: 12W

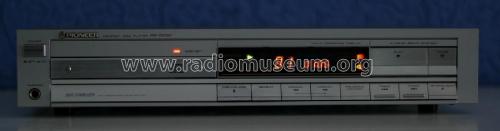

Also available as silver version, without any additional marking.

Net weight (2.2 lb = 1 kg)
4.2 kg / 9 lb 4 oz (9.251 lb)

Price in first year of sale
798.00 DM

Mentioned in
-- Original prospect or advert (1986 Pioneer Hi-Fi Components catalogue)

Literature/Schematics (1)
Conrad-Katalog 1988, Seite 204

Author
Model page created by Howard Craven. See "Data change" for further contributors.
