Compact Disc Player PD-6300

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1989
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 215363

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 110; 120-127; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player PD-6300 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 98 x 324 mm / 16.5 x 3.9 x 12.8 inch
  • Notes

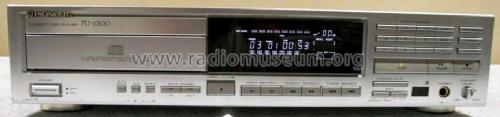

  • A hi-fi stereo compact disc player with infrared remote control housed in a black metal case. 18 bit direct linear conversion, 8 times oversampling digital filter. Anti-resonance and anti-vibration design with weighted base with low centre of gravity and ceramic supports, disc stabilizer, magnetic clamping and honeycomb chassis. With RCA phono sockets for Line Output and coaxial Digital Output, jack for headphones with volume control and on the Canadian model Control input/output terminals.

    Functions

    • Play
    • Pause
    • Stop
    • Manual search
    • Track search
    • Index search
    • Direct selection
    • Five repeat functions: Single track repeat, All track repeat, Programmed repeat, Random play repeat, Programmed random play repeat
    • Programmed playback (up to 24 tracks)
    • Pause program
    • Program check
    • Program correction
    • Program clear
    • Add-on program
    • Auto program editing
    • Time fade editing
    • Computer allocated program editing
    • One touch fade
    • Digital level control (remote control)
    • Random play
    • Programmed random play
    • Auto space
    • Timer start
    Specification
    Frequency response 4Hz - 20kHz (±0.5dB)
    S/N 104dB or more (EIAJ)
    Dynamic range 96dB or more (EIAJ)
    Channel separation 100dB or more (EIAJ)
    Total harmonic distortion 0.0035% or less (EIAJ)
    Output voltage  2.0V
    Wow and flutter Limit of measurement
    Number of channels  2 channels (stereo)
    Digital Coaxial output 0.5 Vp-p ±20% (75Ω)

    Versions/Power requirements

    KU U.S.A. AC120V only
    KC Canada AC120V only
    HEM European continent AC220V, 240V (internally switchable)
    HB United Kingdom AC220V, 240V (internally switchable)
    SD General market AC110V, 120-127V, 220V, 240V (with voltage selector)
    HP Australia AC220V, 240V (internally switchable)

    Power consumption 16 W

    There is a silver cased version with an identical specification and PD-6300 labels which appears in the service manual as the PD-6300-S (type HEM), available in Continental Europe only.

  • Net weight (2.2 lb = 1 kg)
  • 4.1 kg / 9 lb 0.5 oz (9.031 lb)
  • Source of data
  • - - Manufacturers Literature
  • Mentioned in
  • -- Original prospect or advert (1989 Pioneer Hi-Fi Components catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual PD-6300 PD-6300-S dated May 1989)
  • Author
  • Model page created by João-Afonso Santos. See "Data change" for further contributors.
