Elite Reference Compact Disc Player PD-93

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1990
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 273526

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification; Hi-Fi-High End products
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 120-127; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Elite Reference Compact Disc Player PD-93 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 459 x 151 x 435 mm / 18.1 x 5.9 x 17.1 inch
  • Notes

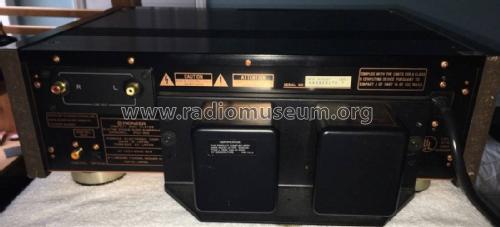

  • A frontloading hi-fi stereo compact disc player with remote control (CU-PD036) housed in a black metal case with a black laquered fascia and wooden side panels. Copper plated honeycomb chassis, 20-bit Dual Balanced D/A converter with an 8-way 20-bit digital oversampling filter. RCA phono sockets for Line Output and Coaxial Digital output, terminal for Optical Digital output.

    Functions

    • Play
    • Pause
    • Stop
    • Track search
    • Manual search
    • Index search
    • Direct selection
    • Five repeat functions: per track, all tracks,program, Random, Programmed Random
    • Programmed playback (up to 24 steps)
    • Pause program
    • Program check
    • Program correction
    • Program clear
    • Random play
    • Programmed random play
    • Time location
    • Display off
    • Timer Standby function (timer as option)
    • Digital/analog output select
    Specification
    Frequency response 2Hz - 20,000 Hz
    S/N 115dB or more (EIAJ)
    Dynamic range 99dB or more (EIAJ)
    Channel separation 110dB or more (EIAJ)
    Total harmonic distortion 0.0015% or less (EIAJ)
    Output voltage 2.0V
    Wow and flutter Limit of measurement

    Version/Power requirements
    UK and Australian models / AC 240V 50/60Hz
    European model / AC 220V 50/60Hz
    U.S. and Canadian models / AC 120V 60Hz
    Multi-voltage model AC 110/120-127/220/240V 50/60Hz with voltage selector

    Power consumption:  30W

    Some examples are labelled 'Reference Compact Disc Player' without 'Elite'.

  • Net weight (2.2 lb = 1 kg)
  • 15.2 kg / 33 lb 7.7 oz (33.48 lb)
  • Mentioned in
  • -- Original prospect or advert (Pioneer - HiFi-Componenten - 1990)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual PD-93 dated June 1990)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Operating Instructions PD-93 dated 1990)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
