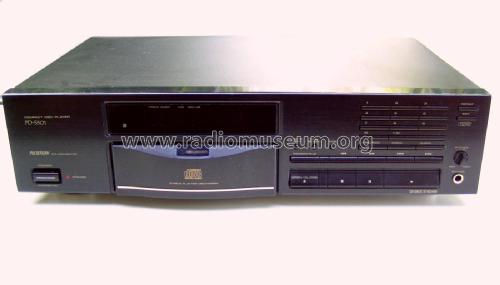

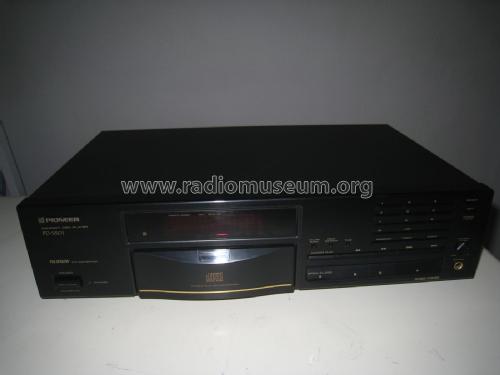

Compact Disc Player PD-S501

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1992
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 218554

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-127; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player PD-S501 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 110 x 276 mm / 16.5 x 4.3 x 10.9 inch
  • Notes

  • A hi-fi stereo compact disc player. Infrared full-function SR remote control with 10-key numeric keypad, power on/off and volume. Anti-resonance and vibration design with honeycomb chassis and large insulators, 1-bit DLC (Direct Linear Conversion) with High-Speed & High-Density Pulseflow D/A Converter, Stable platter mechanism. RCA phono Line Output sockets, CD-Deck Synchro jack and on U.S. and Canadian models, Control input/output jacks. Jack for Headphone with volume control.

    Functions
    "Talk-back" input
    CD-Deck Synchro
    Compu-PGM Edit and Auto program editing
    Digital level control (on remote)
    Hi-Lite Scan
    Peak search
    Memory hold (programmed tracks and level)
    5-mode repeat: 1 TRACK, ALL, PROGRAM, RANDOM and HI-LITE SCAN
    Direct track access by 10 numeric keys
    Random programmed play of 24 tracks
    Random play
    20-track music calendar
    Timer play (timer optional)

    Specification
    Frequency response 2Hz - 20kHz
    S/N ratio 104dB or more (EIAJ)
    Dynamic range 96dB or more (EIAJ)
    Harmonic distortion 0.003% or less (EIAJ)
    Output voltage 2.0 V
    Wow and flutter Limit of measurement
    Channels 2-channel (stereo)

    Versions/Power requirements
    European model                 AC 220-240V 50/60Hz
    U.K. and Australian models AC 220-240V 50/60Hz
    U.S. and Canadian models  AC 120V 60Hz
    Other models     AC 110-127/220-240V 50/60Hz (Switchable)

    Power consumption:   U.S. and Canadian models 14 W, Other models 16 W

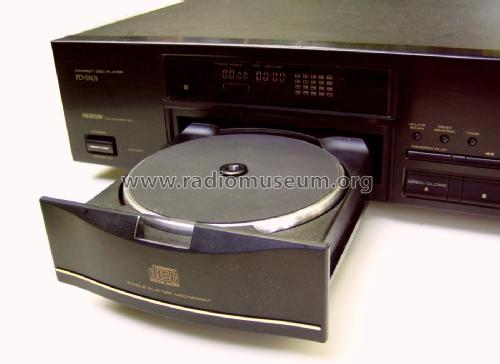

    Die CD wird, entgegen ueblichem Laufwerksaufbau, von oben abgetastet, siehe Detailbild.

    (die CD wird mit der Beschriftung nach unten eingelegt)

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • -- Original prospect or advert (1992 Pioneer Hi-Fi Components catalogue)
