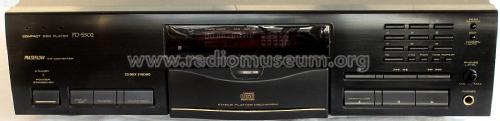

Compact Disc Player PD-S502

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1993/1994
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 287548

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-127; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player PD-S502 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 116 x 286 mm / 16.5 x 4.6 x 11.3 inch
  • Notes

  • A hi-fi stereo compact disc player with infrared remote control. 1-bit DLC (Direct Linear Conversion), anti-resonance and anti-vibration design, centre-tray mechanism, Stable Platter Mechanism to eliminate resonance and vibration. With RCA phono sockets for Line Output, jacks for CD-Deck Synchro and Headphones with volume control.

    Specification
    Frequency response  2Hz - 20kHz
    S/N ratio 106dB or more (EIAJ)
    Dynamic range 96dB or more (EIAJ)
    Harmonic distortion 0.003% or less (EIAJ)
    Output voltage 2.0 V
    Wow and flutter  Limit of measurement
    Channels 2-channel (stereo)

    Versions/Power requirements
    European and Singapore models AC 220-240V 50/60Hz
    U.K. and Australian models    AC 220-240V 60Hz
    Other models    AC 110-127/220-240V 50/60Hz (Switchable)

    Power consumption: 15 W

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Mentioned in
  • -- Original prospect or advert (1993-94 Pioneer AV Products Line Up)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Operating Instructions PD-S602 PD-S502 dated 1993)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Service manual PD-S502 dated Mar 1993)
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
